FiberGutter Standard Profiles

Fiberglass Gutter is an exact representation of the traditional Boston Wood Gutter profile and has been approved in multiple historic district commissions throughout the United States.

FiberGutter features a UV protected, resin impregnated white finish to complement your home and lightweight yet strong fiberglass construction.

All standard 4×5 and 4×6 FiberGutter Profiles are manufactured in 16′, 24′ and 40′ lengths

______________________________________________________________________

Part: FG60

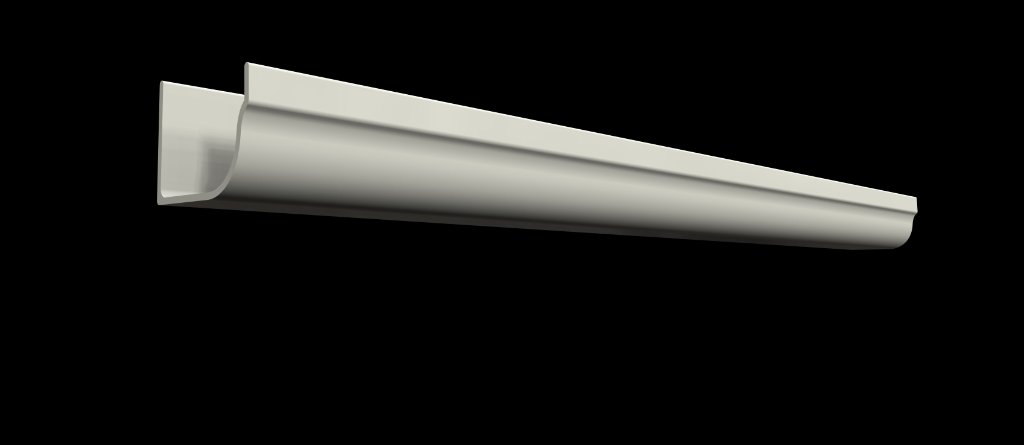

4X5 Fiberglass Gutter

FG6016 – 16′ Length

FG6024 – 24′ Length

FG6040 – 40′ Length

PDF

DWG

______________________________________________________________________

Part: FG613C

4X5 Fiberglass Gutter with 3″ PVC Crown Profile

*PVC is applied at the time of installation

FG613C16 – 16′ Length

FG613C24 – 24′ Length

FG613C40 – 40′ Length

PDF

DWG

______________________________________________________________________

Part: FG62SC

4X5 Fiberglass Gutter with 2-1/4″ PVC Solid Crown

*PVC is applied at the time of installation

FG62SC16 – 16′ Length

FG62SC24 – 24′ Length

FG62SC40 – 40′ Length

PDF

DWG

______________________________________________________________________

Part: FG63BM

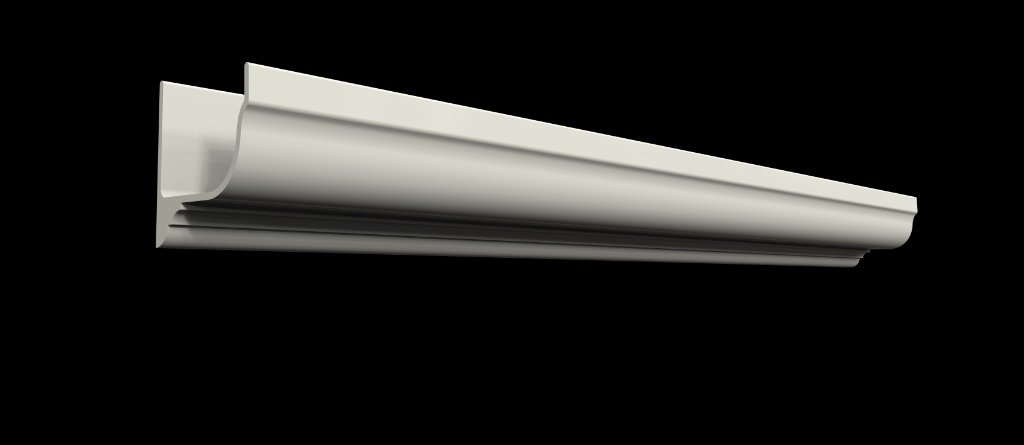

4X5 Fiberglass Gutter with 1-3/4″ PVC Bed Molding

*PVC is applied at the time of installation

FG63BM16 – 16′ Length

FG63BM24 – 24′ Length

FG63BM40 – 40′ Length

PDF

DWG

______________________________________________________________________

Part: FG90

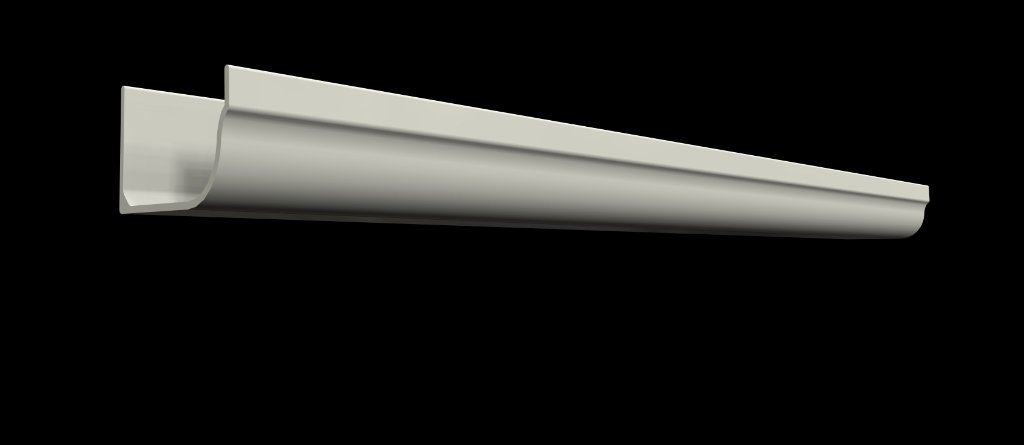

4X6 Fiberglass Gutter

FG9016 – 16′ Length

FG9024 – 24′ Length

FG9040 – 40′ Length

PDF

DWG

______________________________________________________________________

Part: FG913C

4X6 Fiberglass Gutter with 3″ PVC Crown Profile

*PVC is applied at the time of installation

FG913C16 – 16′ Length

FG913C24 – 24′ Length

FG913C40 – 40′ Length

PDF

DWG

______________________________________________________________________

Part: FG92SC

4X6 Fiberglass Gutter with 2-1/4″ PVC Solid Crown

*PVC is applied at the time of installation

FG92SC16 – 16′ Length

FG92SC24 – 24′ Length

FG92SC40 – 40′ Length

PDF

DWG

______________________________________________________________________

Part: FG93BM

4X6 Fiberglass Gutter with 1-3/4″ PVC Bed Mould

*PVC is applied at the time of installation

FG93BM16 – 16′ Length

FG93BM24 – 24′ Length

FG93BM40 – 40′ Length

PDF

DWG

______________________________________________________________________

Part: DSPR-10

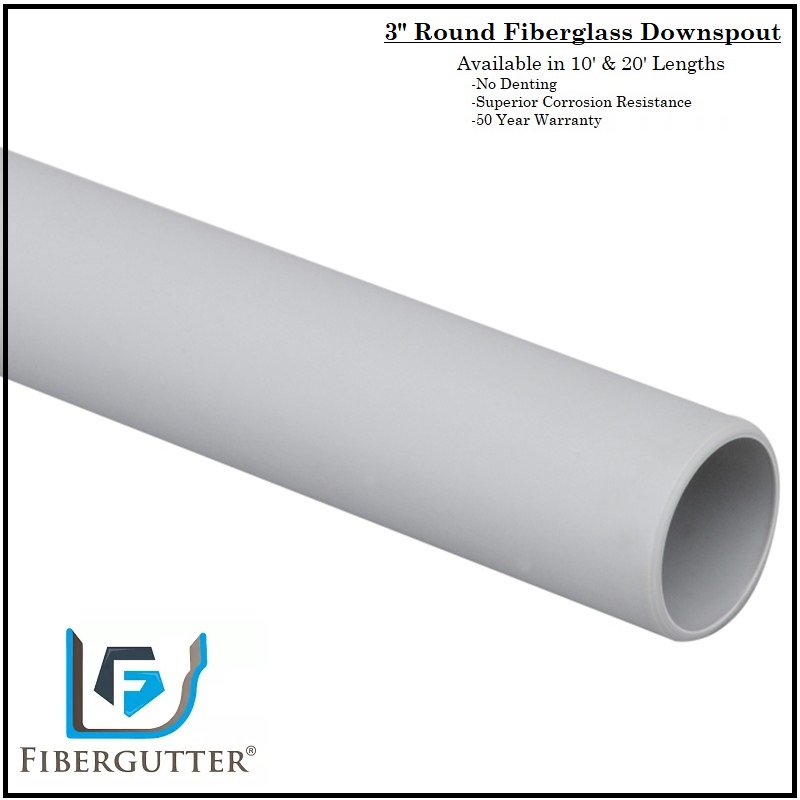

3″ Plain Round Fiberglass Downspout (10′) White

_____________________________________________

Part: DSPR-EL75

3″ Plain Round Fiberglass Elbow 75 Degree

______________________________________________________________________

Part: DSSQ-10

3″ x 3″ Square Fiberglass Downspout (10′) White

______________________________________________________________________

Part: DSSQ-EL75

3″ Square Fiberglass Downspout Elbow

______________________________________________________________________

Part: FGRDGG60

4×5 Inside Valley Collection Box

Part: FGRDGG90

4×6 Inside Valley Collection Box

______________________________________________________________________

Part: FGC6430

4×4 Fiberglass Box Gutter (30′ Length)

Part: FGC6530

5×5 Fiberglass Box Gutter (30′ Length)

Part: FGC6630

6×6 Fiberglass Box Gutter (30′ Length)

______________________________________________________________________

fiberglass gutter accessories

FiberGutter Accessories

We carry all accessories available to complete your gutter installation including 2P10, GutterGlue, End caps, Outlets and Fasteners

Photos Courtesy of Rafferty Wholesale

Gutter Cover / Gutter Guard

While most gutter covers are compatible with Fibergutter we sell only the one that has proven to be the most functional.

____________________________________________________________________________

2p10

Part: 2P10-KIT

2P-10 is used to temporarily hold together end caps seams and miters before the GutterGlue is applied.  This is a great tool to simplify your installation.

2P-10 is a two-part ten-second adhesive. Just apply the adhesive, then spray the activator and stick it together for a strong, permanent bond.

______________________________________________________________________________

GutterGlue

Part: FGGG220

GutterGlue

GutterGlue is used to seal miters, seams, endcaps and outlets.  It comes in a kit which contains the glue, tongue depressors, mixing tips, fiberglass cloth (only required for seams and miters) and 36 Grit sandpaper.

Permanent unitizing structural adhesive, UV inhibitors, rapid curing, two-component adhesive formulated and colored for FiberGutter applications, fast setting, easy to apply.

______________________________________________________________________________

g60 endcap

Part: ECS1 (4×5)

Part: ECS2 (4×6)

Fiberglass End Cap

The FiberGutter End Cap helps prevent water from escaping from the end of a gutter. The end cap has a white finish and a durable fiberglass construction.

  • Helps prevent water from escaping from the end of the gutter
  • Fiberglass construction
  • White Finish
  • Paintable
  • Use at the end if a fiberglass gutter run
  • Requires GutterGlue to complete installation

__________________________________________________________________________outlet

Part: SCH40

PVC Outlet

The FiberGutter Downspout Outlet can be used to direct water from the gutter into the downspout. Featuring durable PVC construction, this downspout outlet can be used with any type of downspout. GutterGlue and a 2-3/8″ Hole Saw is required and to install.

  • PVC construction for durability
  • Directs water from gutter into downspout
  • To install, cut a hole in gutter and insert outlet
  • GutterGlue required for installation

_________________________________________________________________________GRK

Part: GRK60S-1

SS Structural Fastener

The FiberGutter structural screw is made of stainless steel to provide you with tensile, torque and shear strength. The sharp threads and points bite instantly into the back wall of FiberGutter without having to Pre-Drill. The round head with built-in shield (washer type head) has no sharp edges like conventional lag screws.  All structural fasteners carry a lifetime warranty.

_____________________________________________________________________________

Parts List 2020 ~ FiberGutter

FiberGutter Manufacturing Video

FiberGutter adds a functional yet decorative touch to your roofline. FiberGutter helps control runoff, protects walls and helps prevent foundation damage.

FiberGutter carries a 50 Year Warranty.

FiberGutter is sold through a dealer network and installed by construction professionals.

_____________________________________________________________________________

Custom Fiberglass Gutter

In addition to our standard profiles we manufacture a wide range of custom profiles including radius gutter.

We can custom manufacture Half Round Gutter, Box Gutter, large commercial profiles and everything in between.

We have the ability to manufacture in any custom length at the request of the customer.
